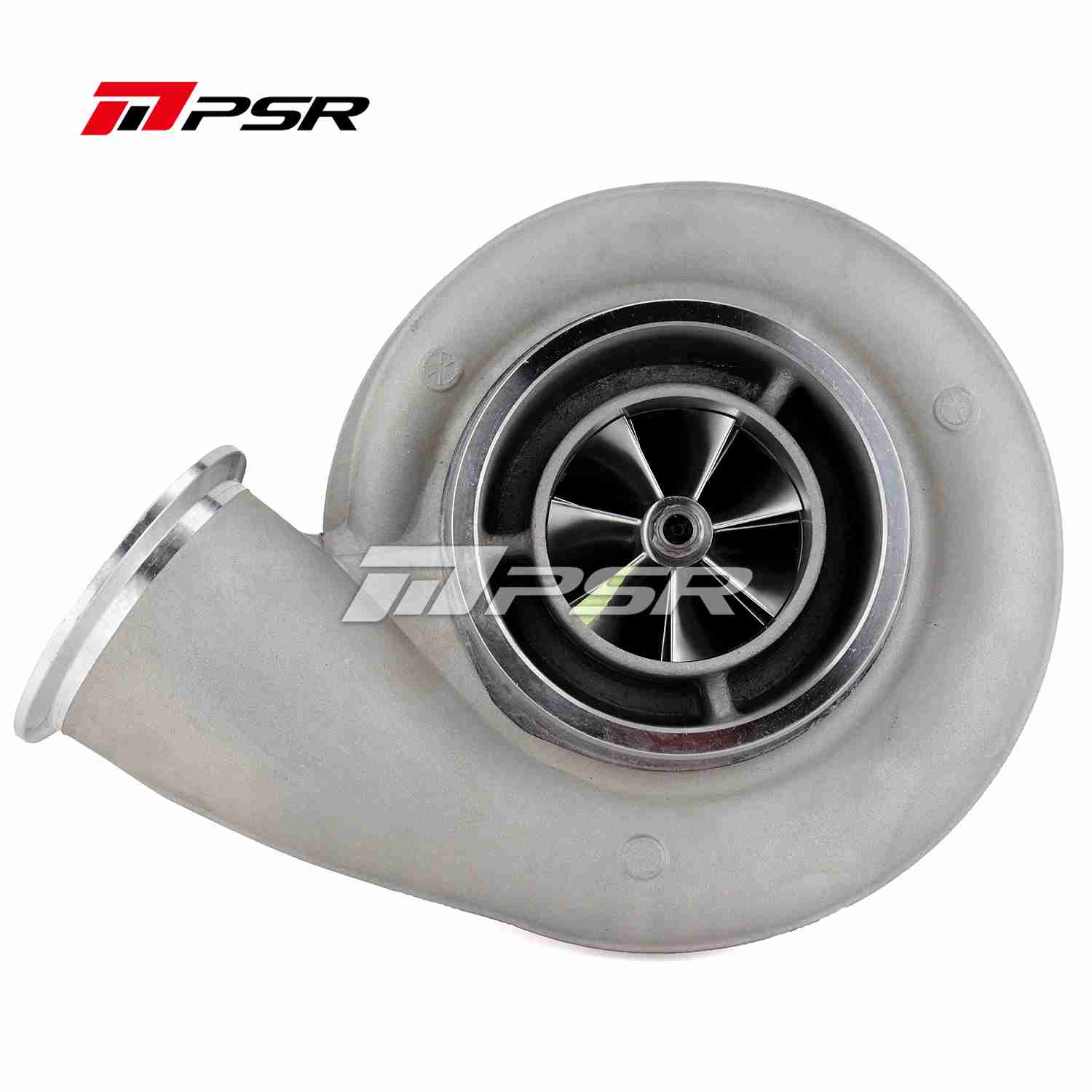

PSR 480 Journal Bearing Billet Compressor Wheel Turbocharger
Compressor Housing Options:
Compressor Housing Options
Turbine Wheel Options:
Turbine Wheel Options
Turbine Housing Options:
Turbine Housing Options
Quantity:
Choose options
Compressor Housing Options:
Compressor Housing Options
Turbine Wheel Options:
Turbine Wheel Options
Turbine Housing Options:
Turbine Housing Options
Quantity:
Compressor Housing Options:
Compressor Housing Options
Turbine Wheel Options:
Turbine Wheel Options
Turbine Housing Options:
Turbine Housing Options
Quantity:
Description
- Billet compressor wheel with extended tip technology for the ultimate in aerodynamics
- Inconel 713 turbine wheel for high-temperature operation
- T6 Divided turbine housings in 1.15A/R 1.32A/R 1.45A/R or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
- T4 Divided turbine housing in 0.9A/R, 1.10A/R, 1.25 A/R with 4” Vband Outlet
Details
Description
Recommending Engine Displacement: 3.0-8.0L HP Rating 750-1250 Features:- Compressor Wheel:80*113mm 7+7 Blade
- Billet Compressor Wheels with Extended Tip Technology
- 83/74mm, 87.4/81.7mm, 96/88mm, 101/91.3mm in Turbine Wheel Options
- STD and T51R MOD in option for Compressor Cover
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
- Compressor Inlet: 5” Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 0.9,1.10, 1.15, 1.25, 1.32,1.45 and 1.58 in Option
- Turbine Housing Inlet: T4 Divided and T6 Divided in Option
- Turbine Housing Outlet: 3/4 Marmon V-band
