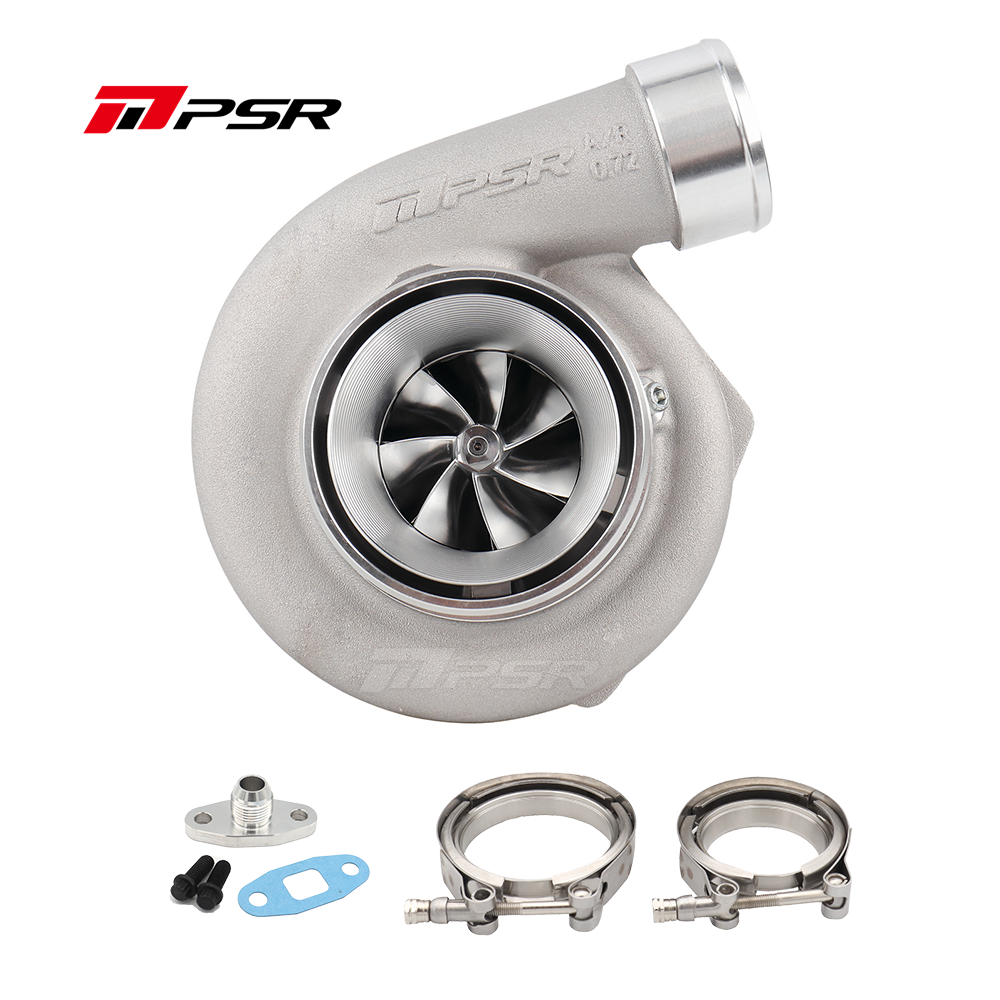

6266E Ball Bearing Turbo UP to 735HP
Compressor Cover Option:
Compressor Cover Option
Turbine Housing Option:
Turbine Housing Option
Quantity:
Choose options
Compressor Cover Option:
Compressor Cover Option
Turbine Housing Option:
Turbine Housing Option
Quantity:
Compressor Cover Option:
Compressor Cover Option
Turbine Housing Option:
Turbine Housing Option
Quantity:
Description
- Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- Billet Compressor Wheel with Slim Nose and Hub for Reduced Weight and Faster Spool-up and Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel
- V-Band Flange kit for the exhaust housing included
- Max Engine Horsepower: 735
Details
- Billet Compressor Wheel: 62mm / 82.2mm, 7+7 Blade
- Turbine Wheel: 66.1 / 74.17mm, 10 Blade
- Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
- Compressor Cover Inlet/Outlet: 4.0'' / 2.5'' Hose
- Turbine Housing: T3 Open inlet & Vband Outlet 0.63A/R, T3 Open inlet & Vband Outlet 0.82A/R, T4 Open inlet & Vband Outlet Stainless Steel 0.63A/R, T4 Open inlet & Vband Outlet 0.96A/R, Vband Inlet&Outlet Stainless Steel 0.82A/R, Vband Inlet&Outlet 0.96A/R
- The internal oil feed port is 0.9mm
- Oil feed fitting: 1/8-27 NPSF(Drawing)
- Oil drain: T4 flange(Drawing)
