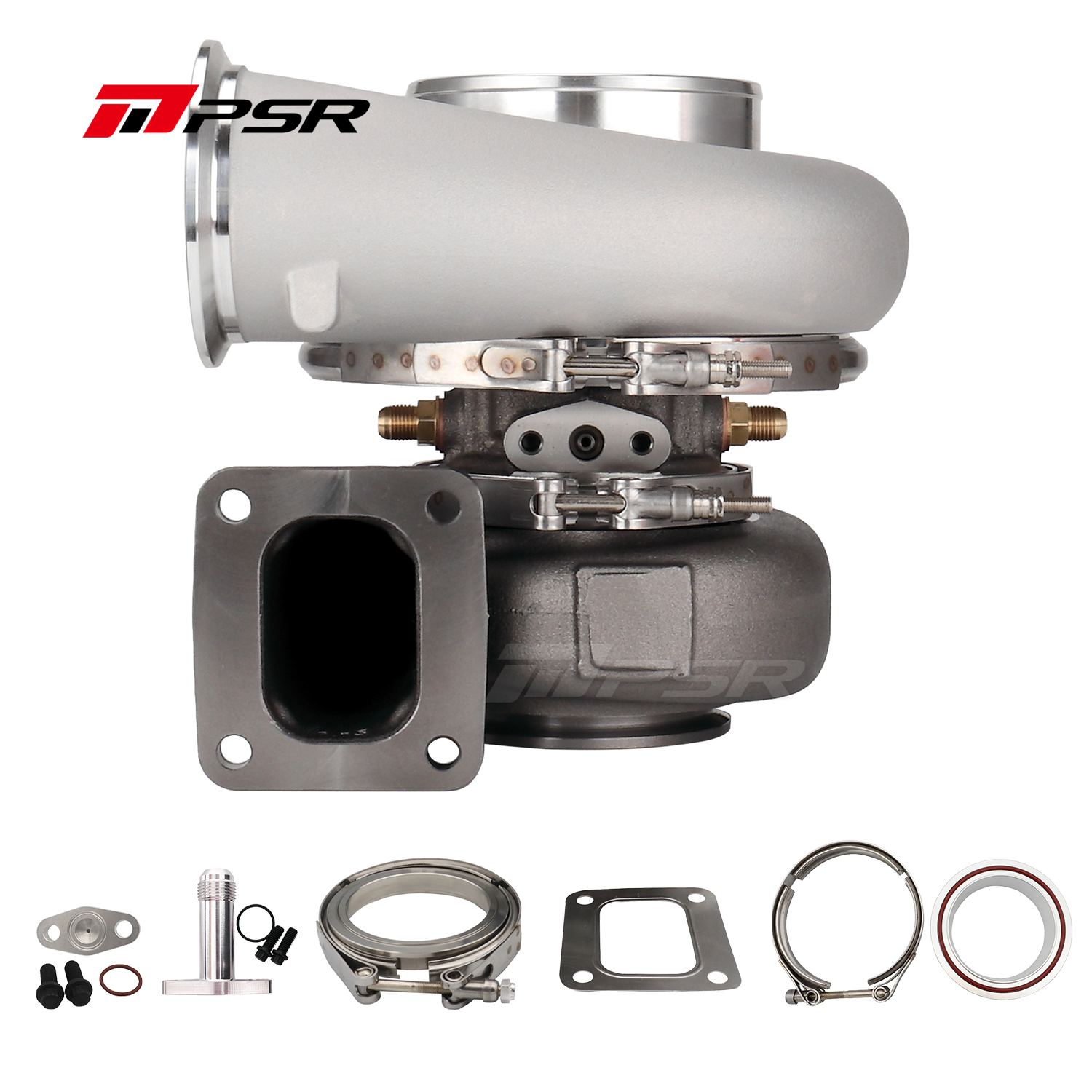

PSR Class Legal 6775G Dual Ball Bearing Turbocharger

Name: PSR Class Legal 6775G Dual Ball Bearing Turbocharger
Brand: pulsarturbobenelux.com
SKU: 102142200=112142267+194342207
Price: 1340.48 EUR
Availability: InStock

€1.340,48

Tax included. Shipping calculated at checkout

SKU: 102142200=112142267+194342207

Estimated Shipping Time : ~2 weeks

Turbine Housing Options:

Compressor Housing Options:

Variant

Quantity:

Description

PSR Class Legal Turbo with 67/98mm Compressor wheel
Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
10 Blade G-Aero billet compressor wheel with extended tapered tip technology
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
7 Turbine housing in option
Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
Oil Feed Fitting(-4AN ∅ 1.65mm (0.065″) Orifice) included

Details

-Compressor Wheel: 67*98mm -Turbine Wheel: 82*75mm -Compressor Inlet: 5" Hose -Compressor Outlet: 3" V-Band -Water Ports: -6AN -Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted) -Oil Drain: Angle 15°, -12AN(O-Ring sealed Flange Kit Incl')

Turbine housing option:

T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R
T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R
