- Compressor Wheel: 62*76mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T25, T3, T4 or Vband
- Turbine Outlet: 3″ V-Band
- Water Ports: 2-M14 X 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
- Oil Outlet: Std T3 Oil Drain Flange
- 11 options of turbine housing: Dual vband 0.72A/R; Dual vband 0.83A/R; Dual vband 1.01A/R; T3 0.72A/R; T3 0.83A/R; T4 0.82A/R; T4 divided 0.85A/R; Dual vband 0.49A/R IWG; Dual vband 0.72A/R IWG; Dual vband 0.92A/R IWG; T25 0.72A/R IWG;

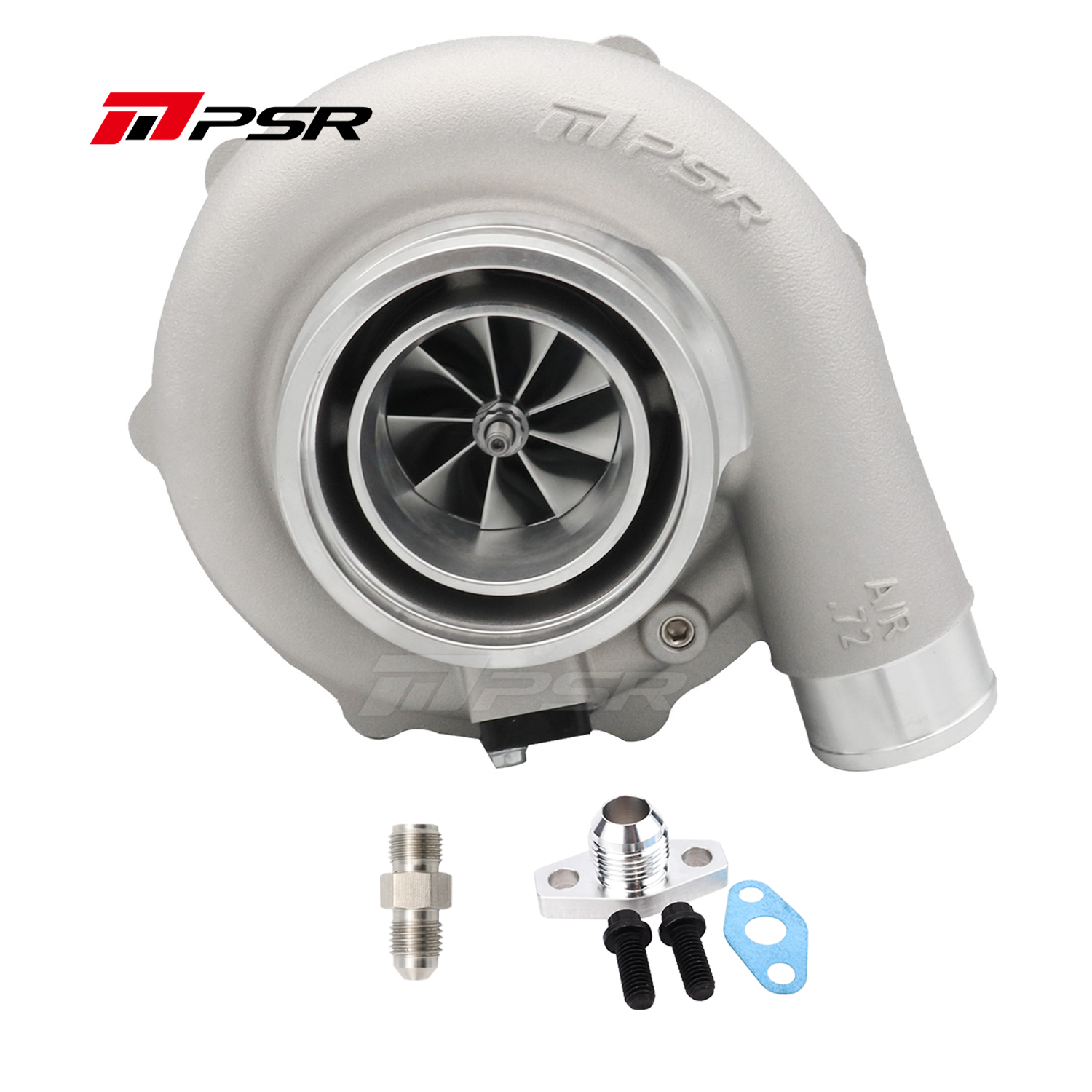

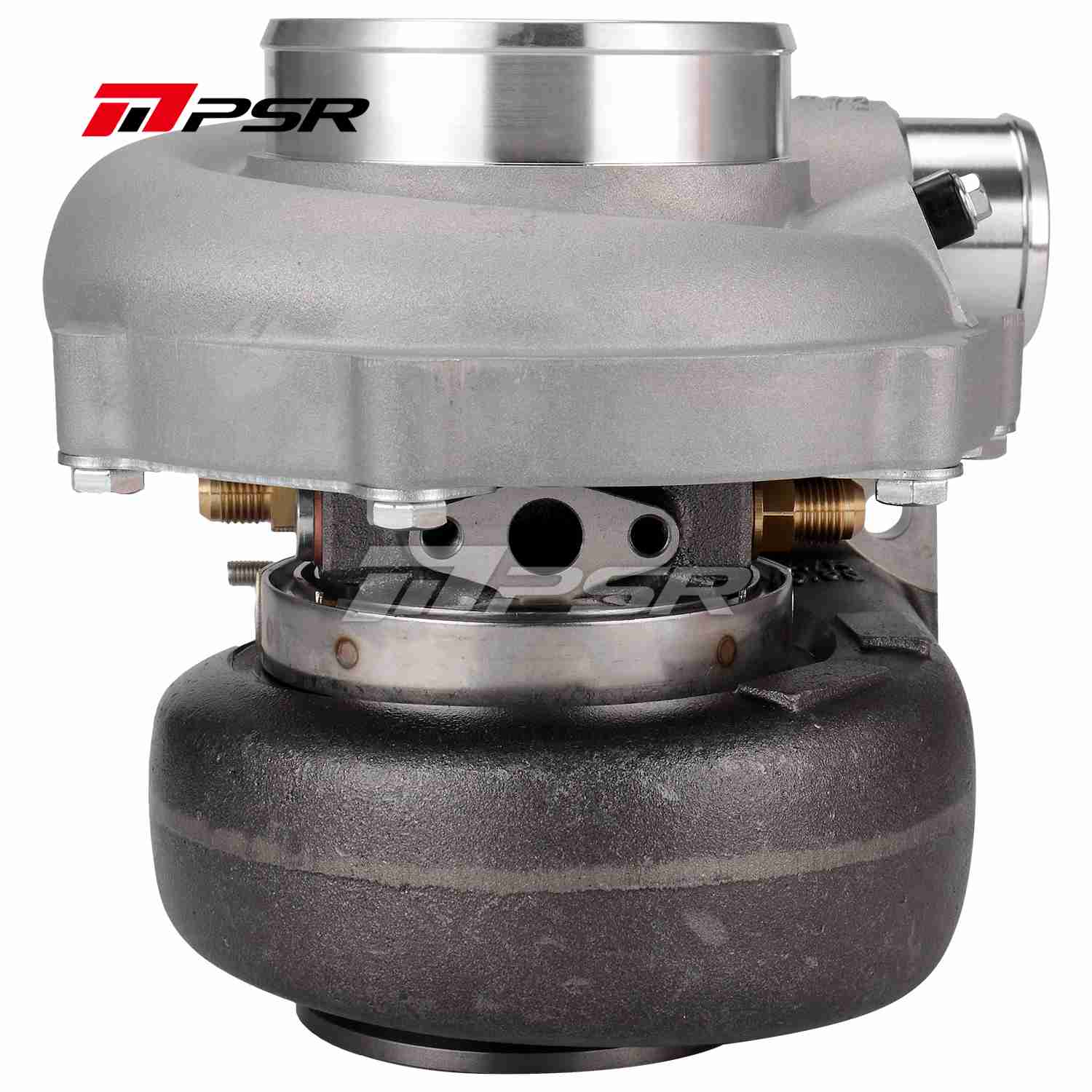

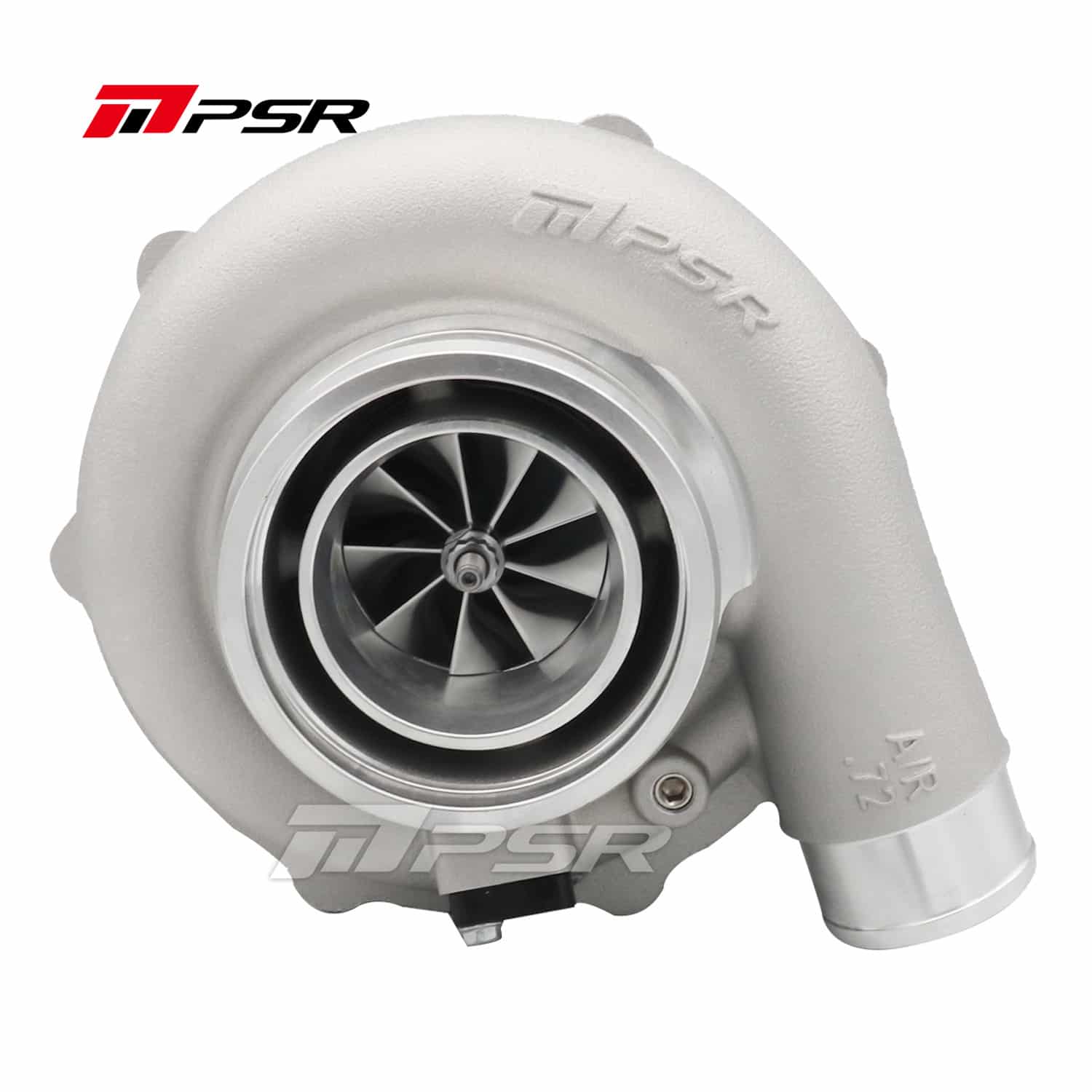

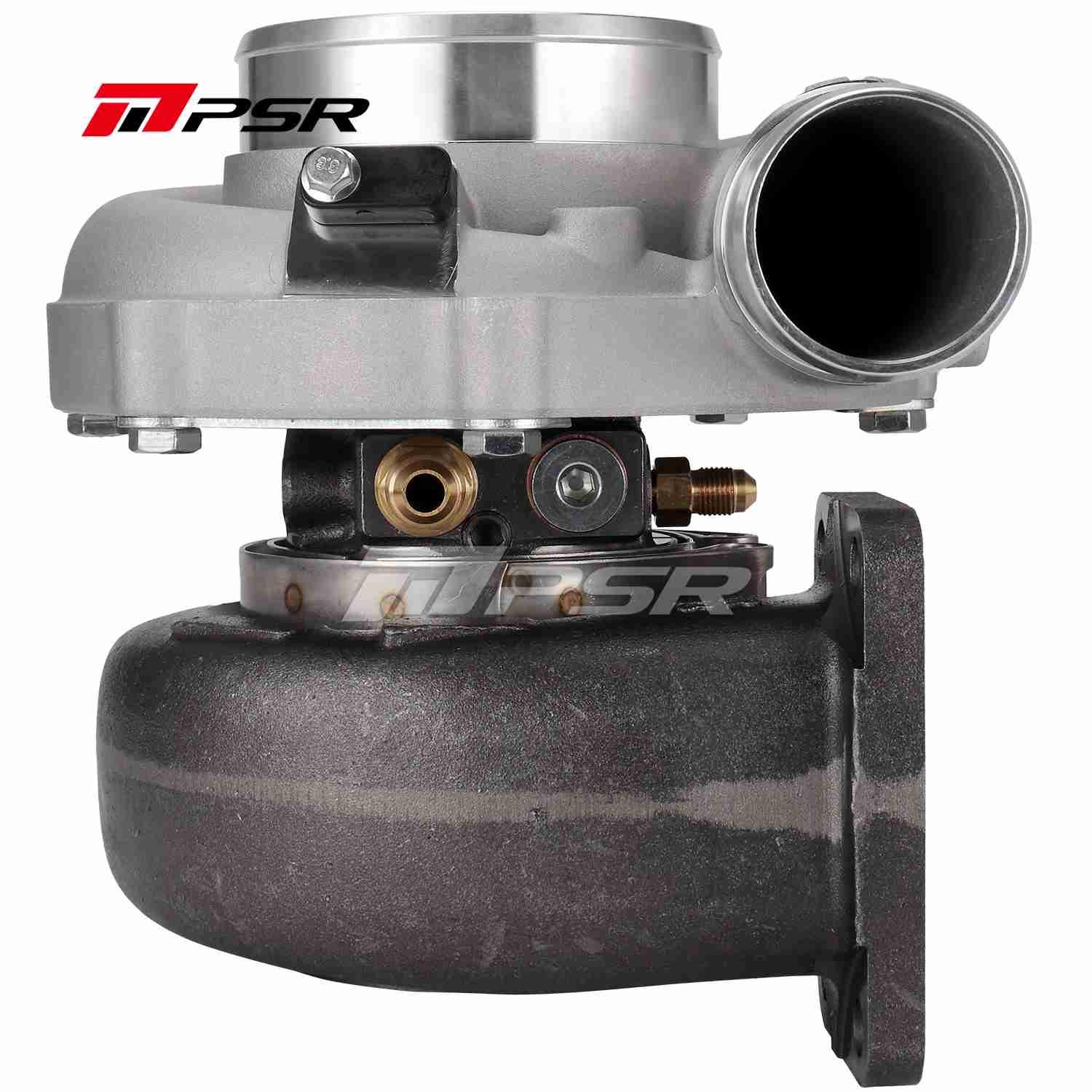

PSR Forward Rotation 6255G Dual Ball Bearing Turbocharger HP Rating 900
Estimated Shipping Time : ~2 weeks
Compressor Housing Options:
Compressor Housing Options
Turbine Housing Options:
Turbine Housing Options
Quantity:
Description
- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Internally Wastegated, Billet Actuator(Working pressure 12 psi)
