- PTG Series Compressor Wheel: 58*71mm
- PTA Series Turbine Wheel: 60*55mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T25, T3, T4 or V-BAND
- Turbine Outlet: V-Band
- Water Ports: 2-M14 X 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
- Oil Outlet: Std T3 Oil Drain Flange

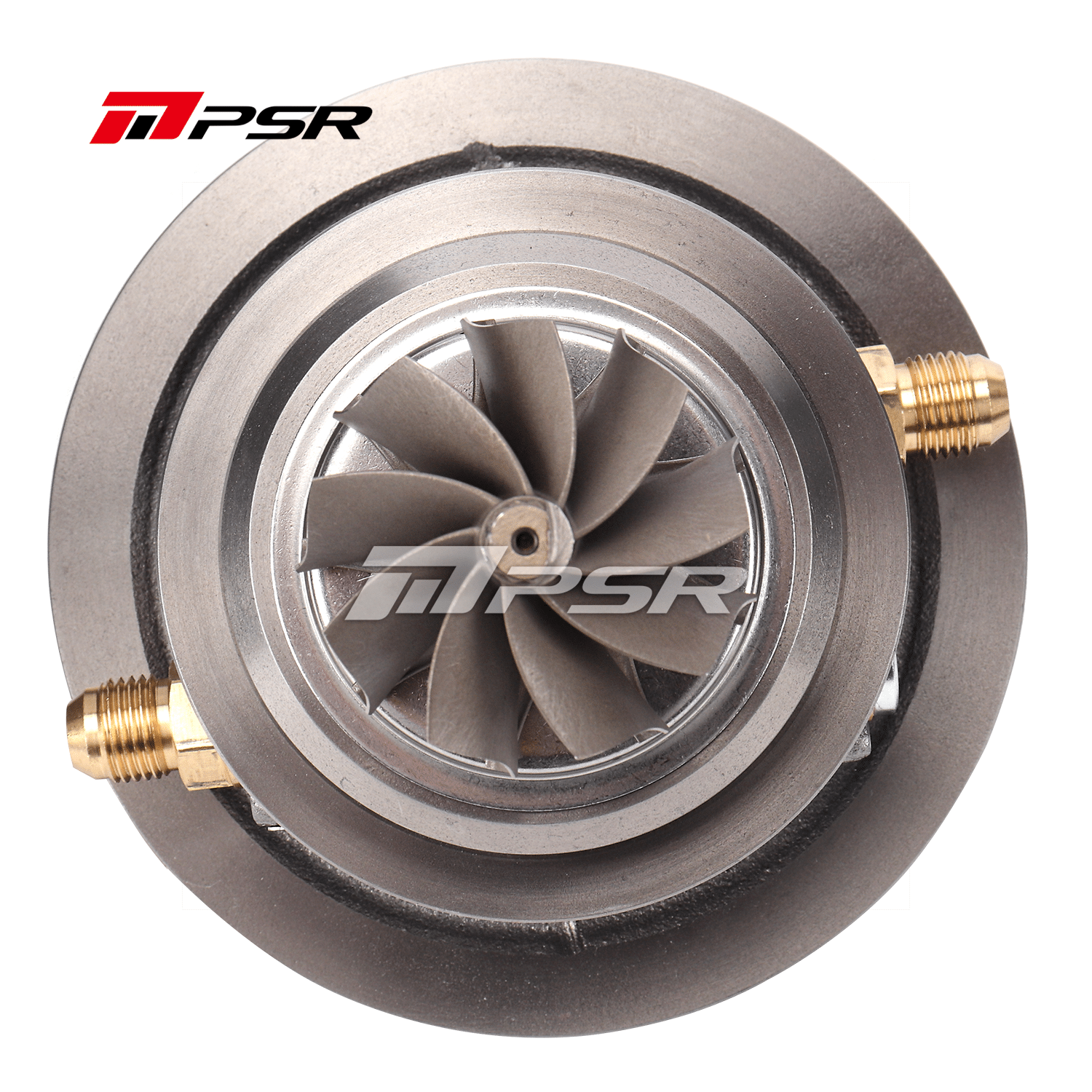

PSR 5855A With PTG Style Compressor Wheel Dual Ball Bearing Turbocharger HP Rating 770
Estimated Shipping Time : ~2 weeks
Compressor Housing Options:
Compressor Housing Options
Turbine Housing Options:
Turbine Housing Options
Quantity:
Description
- PTA series Turbine wheel with slim nose and hub for reduced weight and faster spool-up
- Decentered blades on turbine wheel for improved gas flow ability and reduced turbo lag
- Newly designed Anti-Surge compressor housings with integrated speed sensor port and boost reference port for improved performance monitoring and control
- Dual ball bearing system for improved durability, stability, and reduced friction resulting in enhanced performance and longevity
