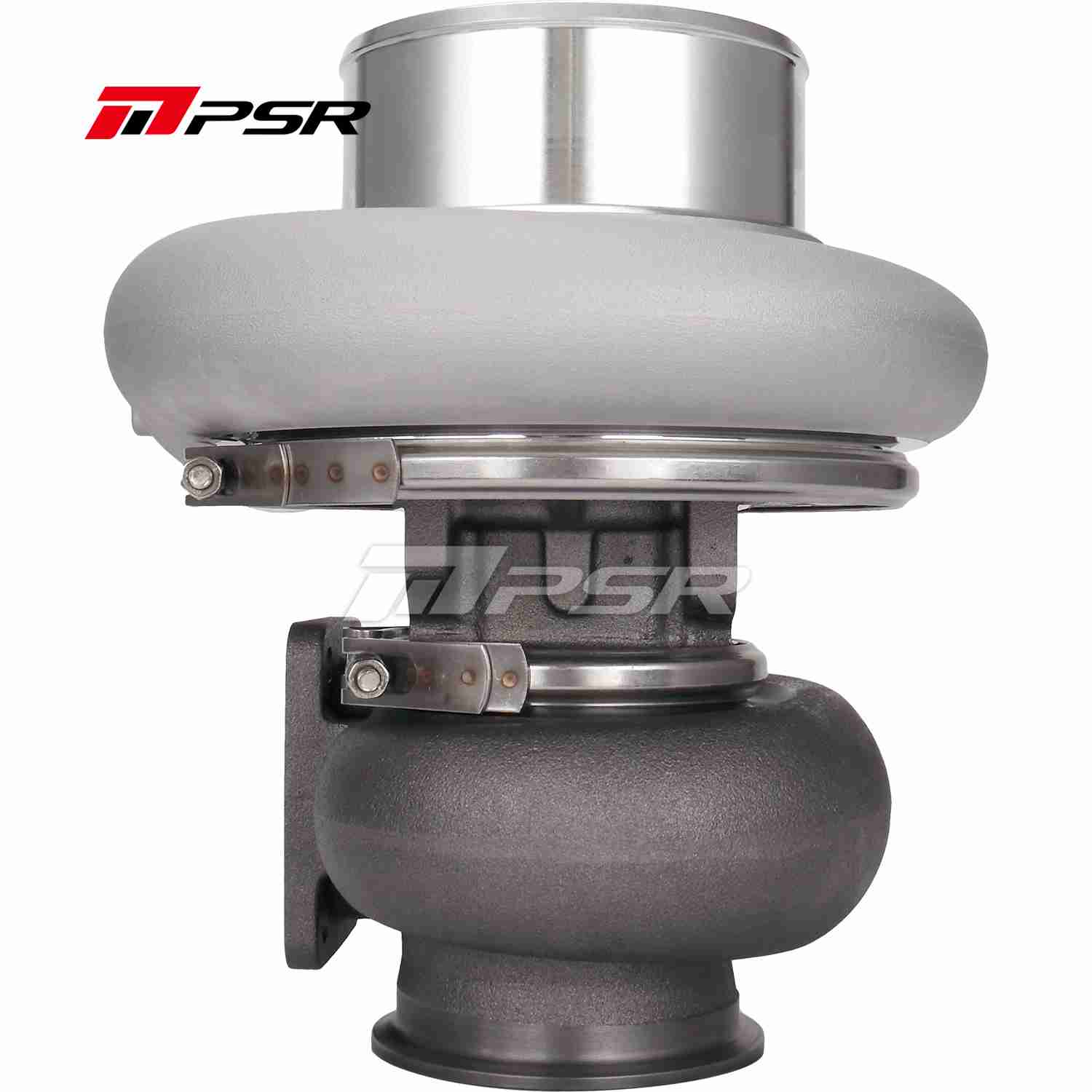

PSR 485G Journal Bearing Curved Point Milled Billet Compressor Wheel Turbocharger
Compressor Housing Options:
Compressor Housing Options
Turbine Wheel Options:
Turbine Wheel Options
Turbine Housing Options:
Turbine Housing Options
Quantity:
Choose options
Compressor Housing Options:
Compressor Housing Options
Turbine Wheel Options:
Turbine Wheel Options
Turbine Housing Options:
Turbine Housing Options
Quantity:
Compressor Housing Options:
Compressor Housing Options
Turbine Wheel Options:
Turbine Wheel Options
Turbine Housing Options:
Turbine Housing Options
Quantity:
Description
- Billet compressor wheel with extended tip technology for the ultimate in aerodynamics
- Inconel 713 turbine wheel for high-temperature operation
- T6 Divided turbine housings in 1.15A/R 1.32A/R or 1.58 A/R with 5" V Band Outlet 5.75 OD Marmon flange
- T4 Divided turbine housing in 1.10A/R, 1.25 A/R with 4'' Vband Outlet
Details
Recommending Engine Displacement: 3.0-8.0L HP Rating 750-1350 Features:- Compressor Wheel: 85x120mm 6+6 Blade (curved point milled )
- Billet Compressor Wheels with Extended Tip Technology
- Turbine Wheel: 96x88mm 9+0
- STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
- Compressor Inlet: 5.5” Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 1.25A/R, 1.15A/R, 1.32A/R,1.45A/R and 1.58A/R in Option
- Turbine Housing Inlet: T4 Divided and T6 Divided in Option
