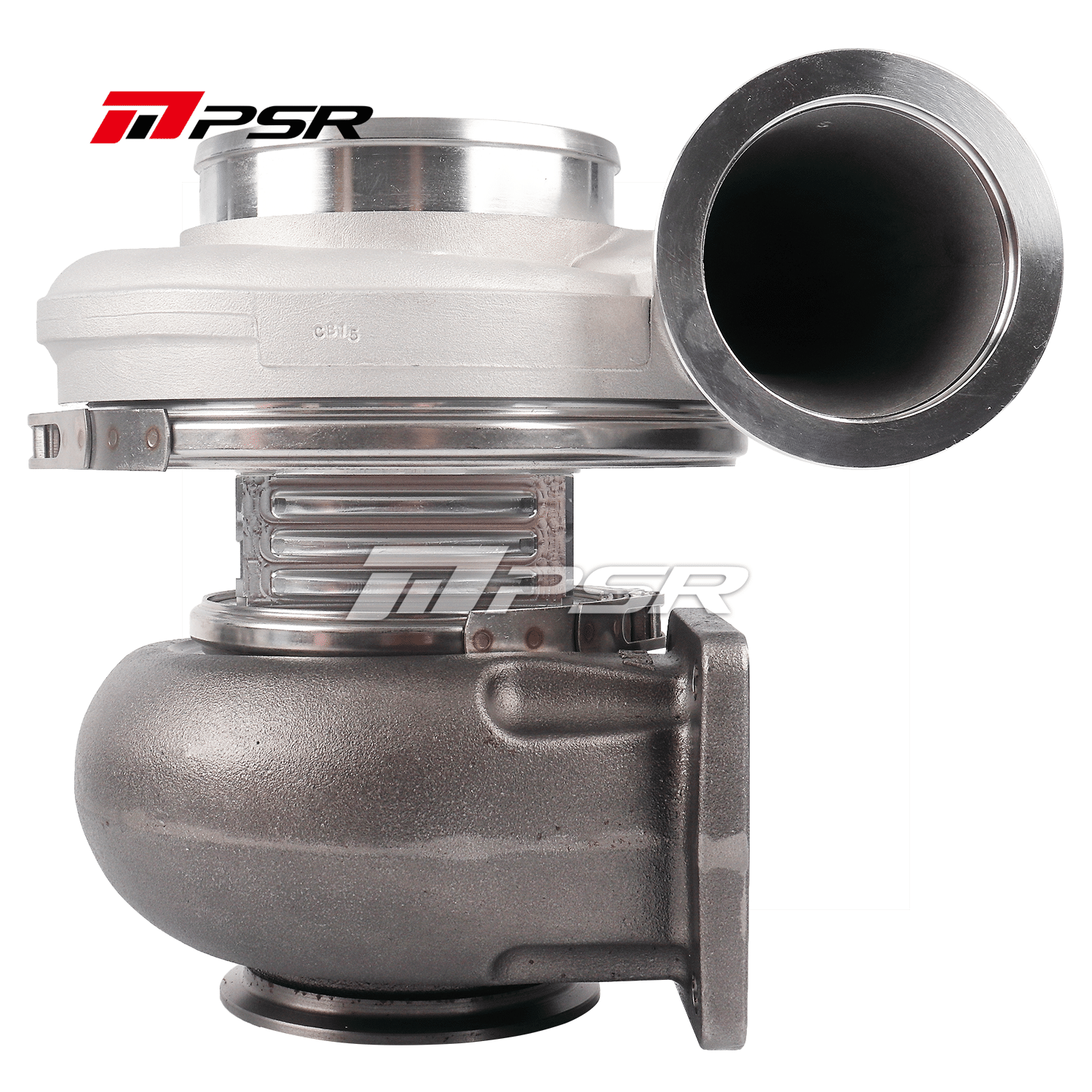

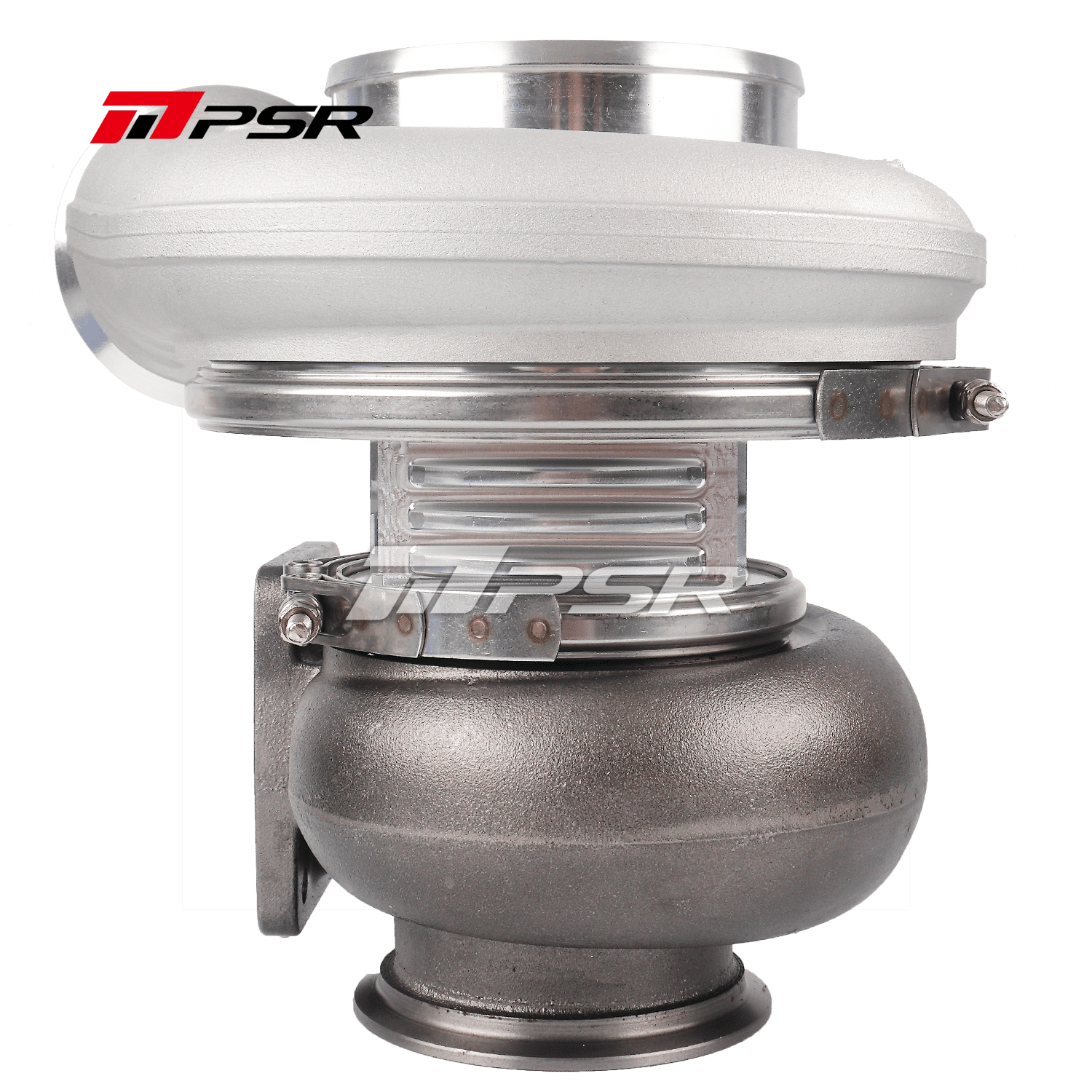

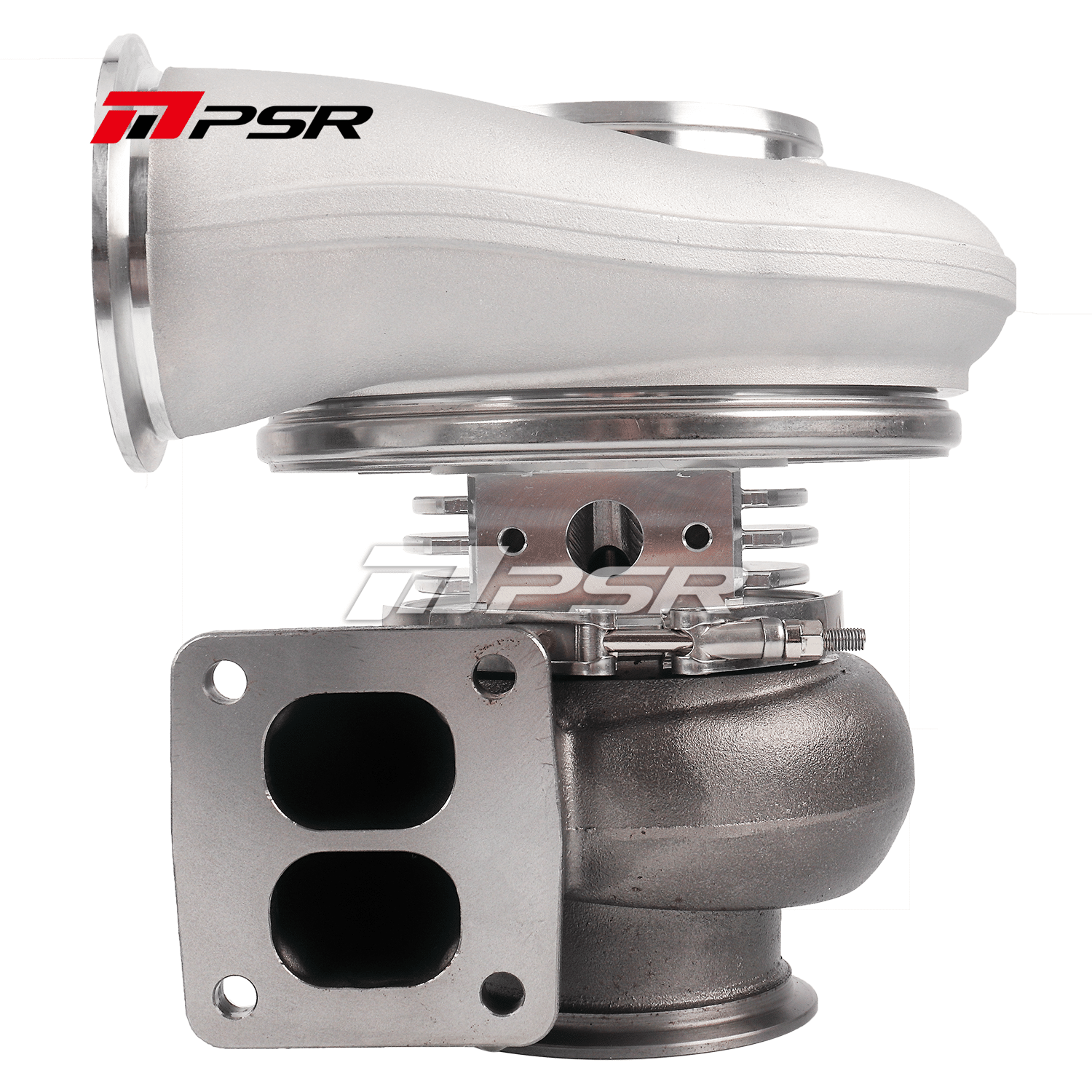

PSR 475DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEEL
Estimated Shipping Time : ~2 weeks
Compressor Housing Options:
Compressor Housing Options
Turbine Housing Options:
Turbine Housing Options
Quantity:
Description
- CNC Machined Aluminum Bearing Housing with The FIN COOLING DESIGN
- G series design 9 Blade Inconel 713 turbine wheel for improved gas flow ability and reduced turbo lag
- Dual Ceramic Ball Bearing Systems
- Billet Compressor Wheels with Extended Tip Technology
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
Details
Recommending Engine Displacement: 3.0-8.0L HP Rating 500-1050 Features:- CNC Machined Aluminum Bearing Housing with The FIN COOLING DESIGN
- G series design 9 Blade Inconel 713 turbine wheel for improved gas flow ability and reduced turbo lag
- Dual Ceramic Ball Bearing Systems
- Billet Compressor Wheels with Extended Tip Technology
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
- Compressor Wheel: 75*101mm 7+7 Blade
- Compressor Inlet: 5'' Slip-Fit
- Compressor Outlet: V-band
- Turbine Wheel: 96*88mm 9 Blade
- Turbine Housing A/R: 1.15, 1.25, 1.32, 1.45, and 1.58 in Option
- Turbine Housing Inlet & Outlet: T4 Divided Inlet, V-band Outlet; T6 Divided Inlet, 3/4 Marmon Outlet
- Oil Feed Port 1/4NPT
- Oil Drain Std T6 drain Flange
